WRI-0175-LS-O - Datasheet
MBA
Category Information

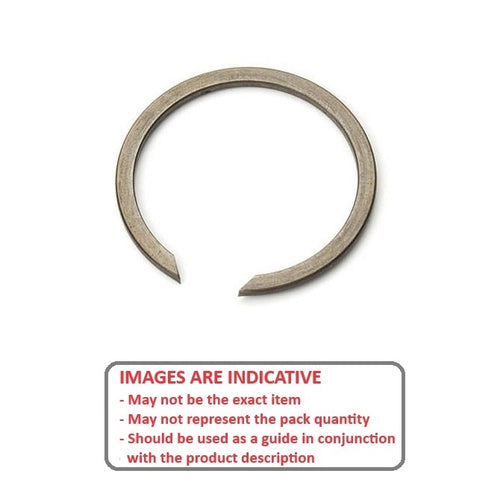

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar

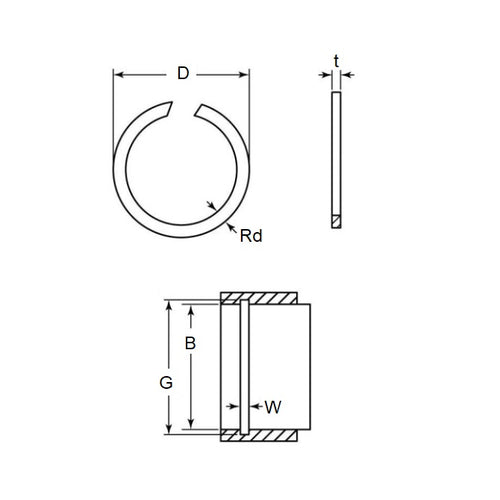

Product Data
- Housing Bore (B)
:
17.48
mm
(Equiv. 0.688 in.) - Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.) - Groove Dia. (Dg)
18.29
mm
+/- 0.08
(Equiv. 0.72 in.) - Approx. Loose Circlip OD (Dr) 18.62 mm + 0.64 / - 0.00
- Section (Rd) 1.22 mm +/- 0.08
- Groove Width (W) 0.99 mm
- Approx. Loose Clip ID 16.18
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-068
- NoCor UHB-068
- Rotorclip UHB-068
- WRI0175SRO
- UHB068
- NAN068
