WRI-0111-LS-O - Datasheet
MBA
Category Information

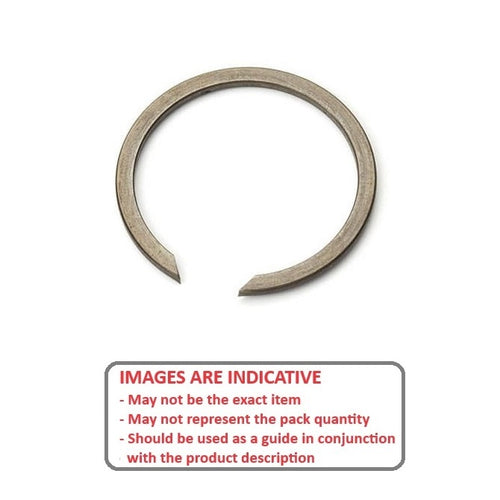

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data

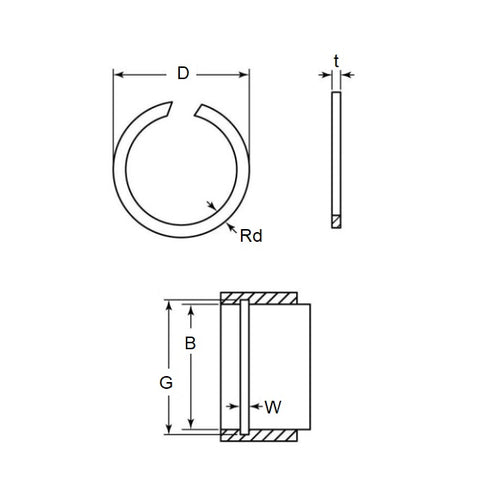

- Housing Bore (B)
:
11.13
mm
(Equiv. 0.438 in.) - Clip Thickness (T)
0.64
mm
+/- 0.05
(Equiv. 0.025 in.) - Groove Dia. (Dg)
11.74
mm
+/- 0.08
(Equiv. 0.462 in.) - Approx. Loose Circlip OD (Dr) 11.86 mm + 0.51 / - 0.00
- Section (Rd) 0.89 mm +/- 0.08
- Groove Width (W) 0.71 mm
- Approx. Loose Clip ID 10.08
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-043
- NoCor UHB-043
- Rotorclip UHB-043
- WRI0111SRO
- UHB043
- NAN043
