Category Information

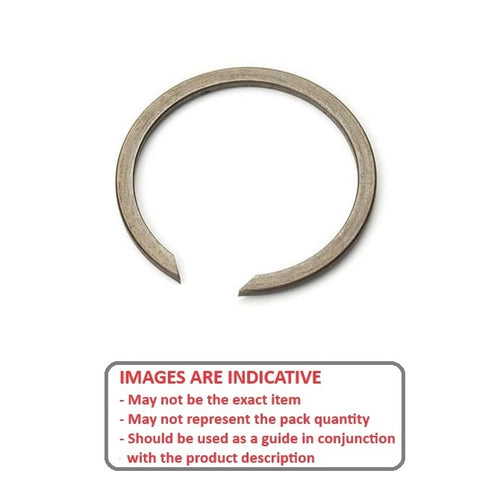

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data

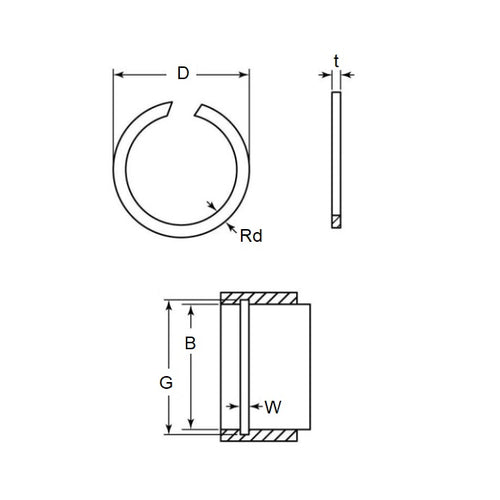

- Housing Bore (B)
:
104.78
mm
(Equiv. 4.125 in.) - Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.) - Groove Dia. (Dg)
108.84
mm
+/- 0.15
(Equiv. 4.285 in.) - Approx. Loose Circlip OD (Dr) 110.62 mm + 2.40 / - 0.00
- Section (Rd) 6.35 mm +/- 0.13
- Groove Width (W) 3.05 mm
- Approx. Loose Clip ID 97.92
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-412
- NoCor UHB-412
- Rotorclip UHB-412
- WRI1048SRO
- UHB412
- NAN412
