WRE-0850-LS - Datasheet
MBA
Category Information
Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data

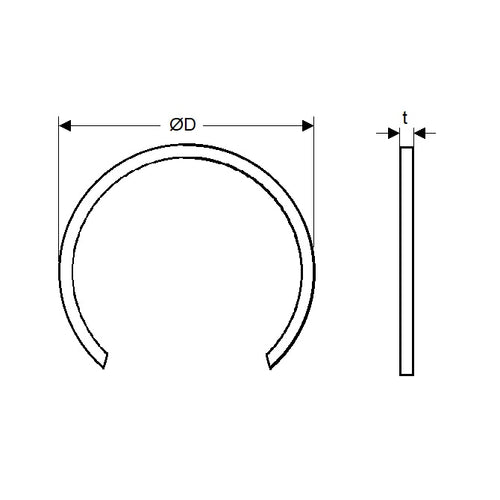

- Shaft or Bearing OD (d1)
:
85.00
mm
(Equiv. 3.346 in.) - Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.) - Groove Dia. (Dg)
83.00
mm
+ 0 / - 0.22
(Equiv. 3.268 in.) - Approx. Loose Circlip ID (A) 82.00 mm
- Radial Wall (S) min/max 3.40 mm + 0 / - 0.10
- Groove Width (W) 2.70 mm
- Approx. Loose Clip OD 88.8
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSW-085
- NTN WR85
- DSW085
- WRE0850SQ
- M2400-0850APP
- M24000850APP
