WRE-0071-SQ-O - Datasheet

MBA

Category Information

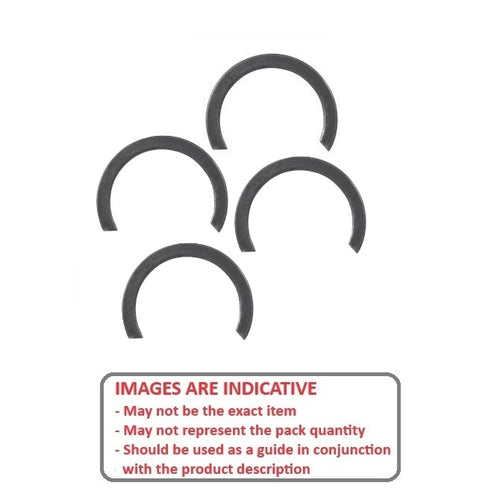

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 7.14 mm
    (Equiv. 0.281 in.)
  • Clip Thickness (T) 0.79 mm +/- 0.08
    (Equiv. 0.031 in.)
  • Groove Dia. (Dg) 6.73 mm + 0.10 / - 0.00
    (Equiv. 0.265 in.)
  • Approx. Loose Circlip ID (A) 6.63 mm + 0.00 / - 2.00
  • Radial Wall (S) min/max 0.79 mm +/- 0.08
  • Groove Width (W) 0.91 mm
  • Approx. Loose Clip OD 8.21
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-2155
  • Arcon CSO-2155
  • NoCor XSO-2155
  • A06002155
  • A0600-2155
  • CSO2155
  • XSO2155
  • 4002155
