WRE-0381-SQ-HO - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

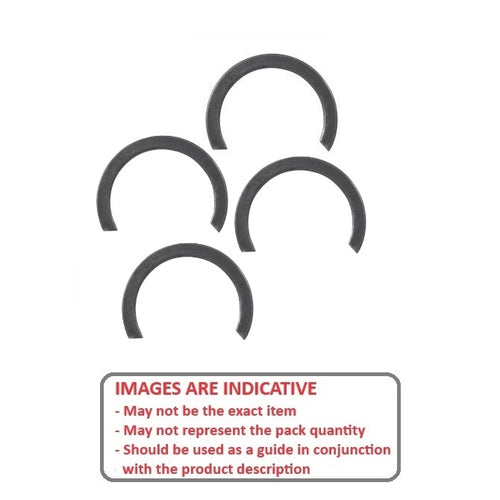

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 38.10 mm
    (Equiv. 1.5 in.)
  • Clip Thickness (T) 4.75 mm +/- 0.08
    (Equiv. 0.187 in.)
  • Groove Dia. (Dg) 35.71 mm + 0.08 / - 0.00
    (Equiv. 1.406 in.)
  • Approx. Loose Circlip ID (A) 35.36 mm + 0.00 / - 1.60
  • Radial Wall (S) min/max 4.75 mm +/- 0.08
  • Groove Width (W) 4.95 mm
  • Approx. Loose Clip OD 44.86
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-255
  • Arcon CSO-255
  • NoCor XSO-255
  • A0600-255
  • A0600255
  • CSO255
  • XSO255
  • 400255
