WRE-0365-SQ-O - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 36.53 mm
    (Equiv. 1.438 in.)
  • Clip Thickness (T) 3.05 mm +/- 0.08
    (Equiv. 0.12 in.)
  • Groove Dia. (Dg) 34.98 mm + 0.08 / - 0.00
    (Equiv. 1.377 in.)
  • Approx. Loose Circlip ID (A) 34.65 mm + 0.00 / - 1.20
  • Radial Wall (S) min/max 3.05 mm +/- 0.08
  • Groove Width (W) 3.25 mm
  • Approx. Loose Clip OD 40.75
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-252
  • Arcon CSO-252
  • NoCor XSO-252
  • A0600252
  • A0600-252
  • CSO252
  • XSO252
  • 400252
View full details

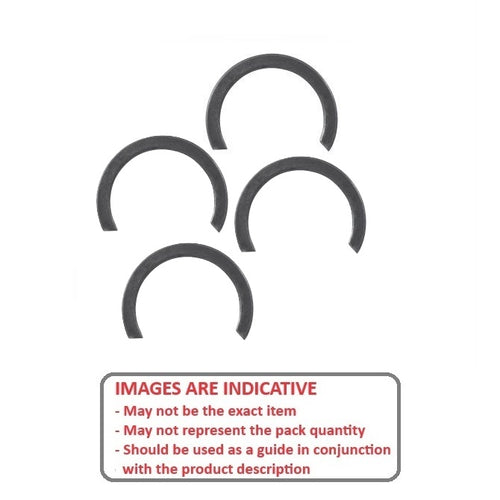

WRE-0365-SQ-ODiagramWRE-0365-SQ-OImage
