WRE-0333-SQ-HO - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 33.33 mm
    (Equiv. 1.312 in.)
  • Clip Thickness (T) 3.96 mm +/- 0.08
    (Equiv. 0.156 in.)
  • Groove Dia. (Dg) 31.34 mm + 0.08 / - 0.00
    (Equiv. 1.234 in.)
  • Approx. Loose Circlip ID (A) 31.04 mm + 0.00 / - 1.20
  • Radial Wall (S) min/max 3.96 mm +/- 0.08
  • Groove Width (W) 4.17 mm
  • Approx. Loose Clip OD 38.96
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-249
  • Arcon CSO-249
  • NoCor XSO-249
  • A0600-249
  • A0600249
  • CSO249
  • XSO249
  • 400249
View full details

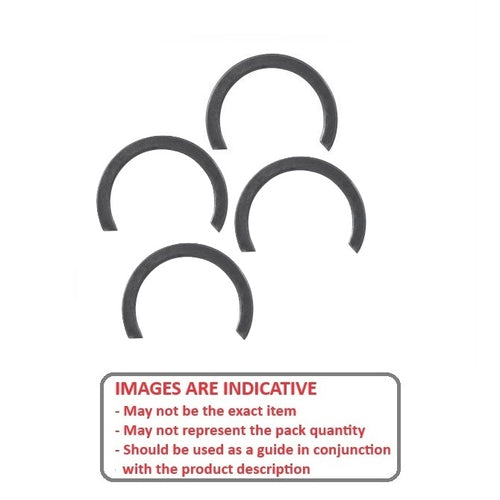

WRE-0333-SQ-HODiagramWRE-0333-SQ-HOImage
