WRE-0302-SQ-O - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 30.18 mm
    (Equiv. 1.188 in.)
  • Clip Thickness (T) 2.36 mm +/- 0.05
    (Equiv. 0.093 in.)
  • Groove Dia. (Dg) 28.96 mm + 0.08 / - 0.00
    (Equiv. 1.14 in.)
  • Approx. Loose Circlip ID (A) 28.70 mm + 0.00 / - 0.90
  • Radial Wall (S) min/max 2.36 mm +/- 0.05
  • Groove Width (W) 2.54 mm
  • Approx. Loose Clip OD 33.42
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-244
  • Arcon CSO-244
  • NoCor XSO-244
  • A0600244
  • A0600-244
  • CSO244
  • XSO244
  • 400244
View full details

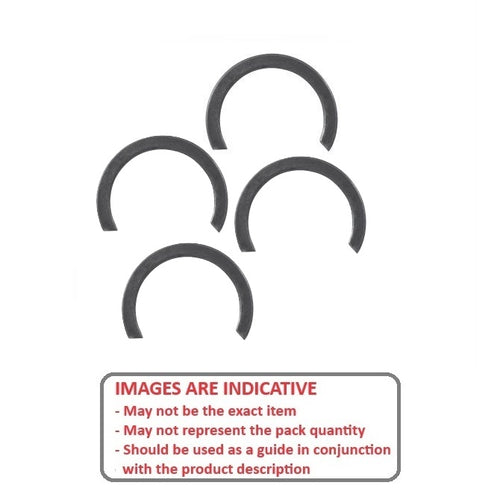

WRE-0302-SQ-ODiagramWRE-0302-SQ-OImage
