AC-2580-2 - Datasheet

MBA

Product Data

• Stroke : 80.0 mm
  (Equiv. 3.15 in.)
• Thread (C) M25x1.5
• Length (A) 336.5 mm
  (Equiv. 13.248 in.)
• Shaft Size (D) 8.0 mm
• Max. Effective Mass 50 Kg
• Max. Nm Per Cycle 150
• Max. Nm Per Hour 120000
• Max Impact Speed 2.5 m/s
• Weight 535 g
• Body Length (B) 100 mm
• Tip Length x Diameter (CxE) 22x19.5 mm

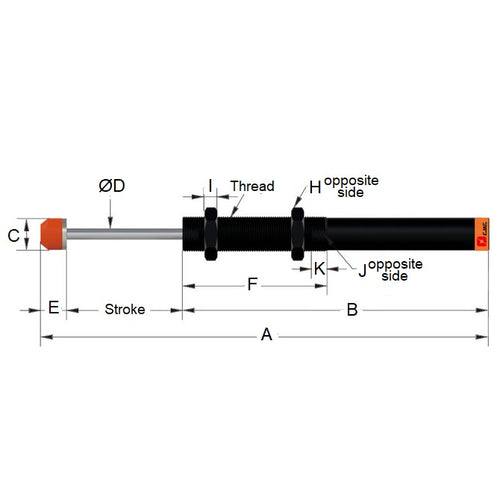

• Figure Figure 2.
