AC-3660-2 - Datasheet

MBA

Product Data

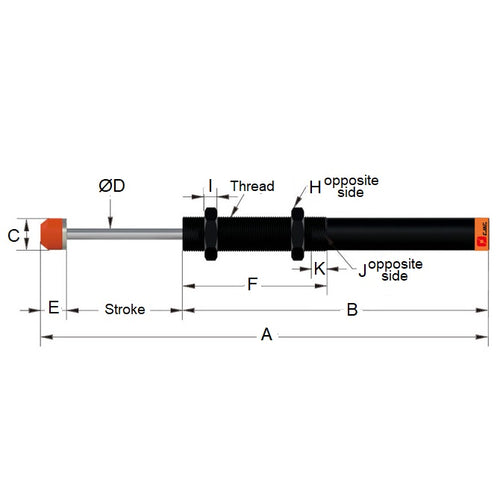

• Stroke : 60.0 mm
  (Equiv. 2.362 in.)
• Thread (C) M36x1.5
• Length (A) 248.0 mm
  (Equiv. 9.764 in.)
• Shaft Size (D) 10.0 mm
• Max. Effective Mass 1500 Kg
• Max. Nm Per Cycle 250
• Max. Nm Per Hour 120000
• Max Impact Speed 2.5 m/s
• Weight 1030 g
• Body Length (B) 134 mm
• Tip Length x Diameter (CxE) 35x26 mm
• Figure Figure 4.
