AC-2550-3 - Datasheet

MBA

Product Data

• Stroke : 50.0 mm
  (Equiv. 1.969 in.)
• Thread (C) M25x1.5
• Length (A) 240.0 mm
  (Equiv. 9.449 in.)
• Shaft Size (D) 8.0 mm
• Max. Effective Mass 160 Kg
• Max. Nm Per Cycle 98
• Max. Nm Per Hour 90000
• Max Impact Speed 2.5 m/s
• Weight 435 g
• Body Length (B) 100 mm
• Tip Length x Diameter (CxE) 22x19.5 mm

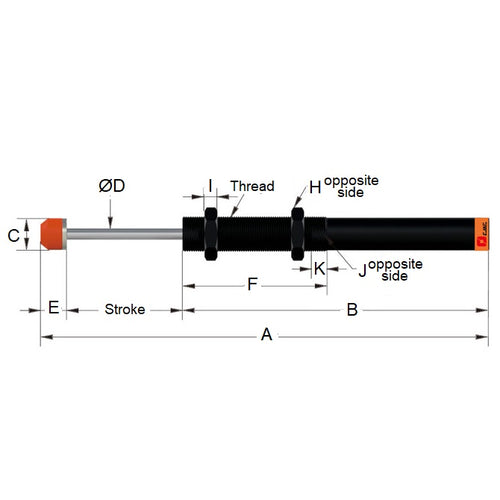

• Figure Figure 2.
