AC-2050-3 - Datasheet

MBA

Product Data

• Stroke : 50.0 mm
  (Equiv. 1.969 in.)
• Thread (C) M20x1.5
• Length (A) 235.0 mm
  (Equiv. 9.252 in.)
• Shaft Size (D) 6.0 mm
• Max. Effective Mass 1200 Kg
• Max. Nm Per Cycle 60
• Max. Nm Per Hour 60000
• Max Impact Speed 1.0 m/s
• Weight 300 g
• Body Length (B) 167 mm
• Tip Length x Diameter (CxE) 18x18 mm

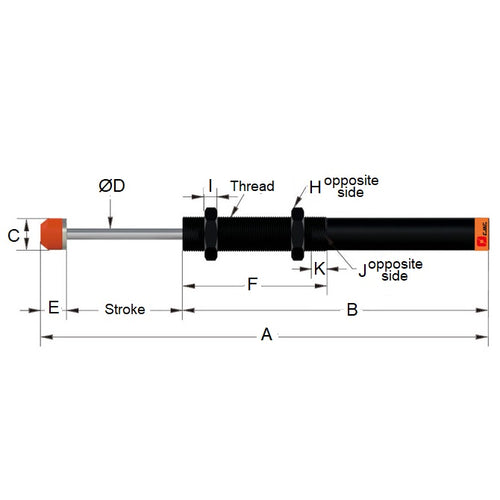

• Figure Figure 1.
