AC-2540-2 - Datasheet

MBA

Product Data

• Stroke : 40.0 mm
  (Equiv. 1.575 in.)
• Thread (C) M25x1.5
• Length (A) 213.0 mm
  (Equiv. 8.386 in.)
• Shaft Size (D) 8.0 mm
• Max. Effective Mass 1200 Kg
• Max. Nm Per Cycle 120
• Max. Nm Per Hour 75000
• Max Impact Speed 2.5 m/s
• Weight 430 g
• Body Length (B) 117 mm
• Tip Length x Diameter (CxE) 22x36 mm

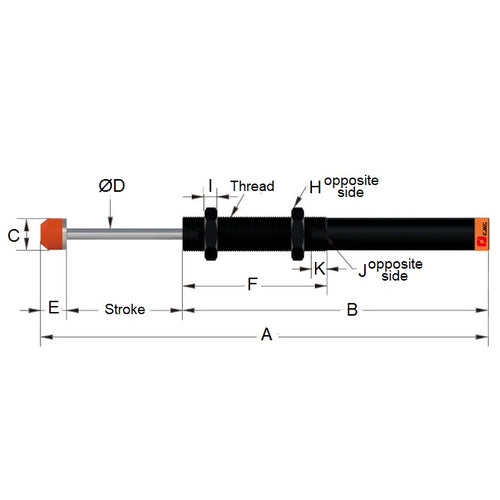

• Figure Figure 1.
