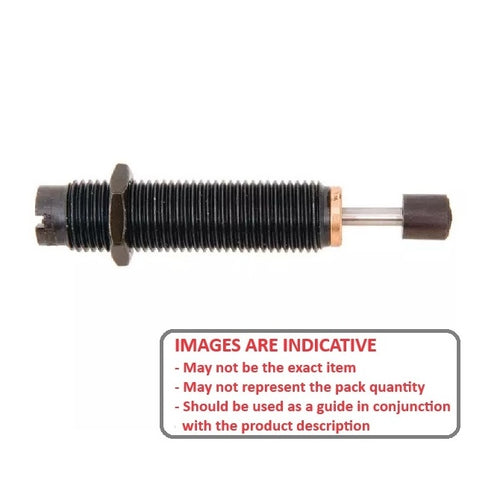

ACD-2035-3 - Datasheet

MBA

Product Data

• Stroke : 35.0 mm
  (Equiv. 1.378 in.)
• Thread (C) M20x1.5
• Length (A) 223.0 mm
  (Equiv. 8.78 in.)
• Shaft Size (D) 6.0 mm
• Max. Effective Mass 650 Kg
• Max. Nm Per Cycle 52
• Max. Nm Per Hour 63000
• Max Impact Speed 1.0 m/s
• Weight 210 g
• Body Length (B) 123 mm
• Tip Length x Diameter (CxE) 18x15 mm

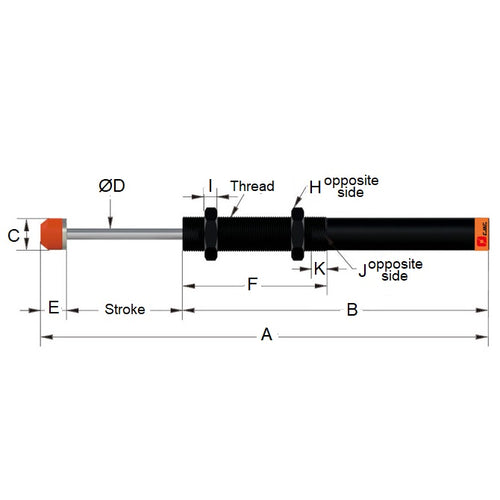

• Figure Figure 2.
