ACD-2030-2 - Datasheet

MBA

Product Data

• Stroke : 30.0 mm
  (Equiv. 1.181 in.)
• Thread (C) M20x1.5
• Length (A) 189.0 mm
  (Equiv. 7.441 in.)
• Shaft Size (D) 6.0 mm
• Max. Effective Mass 300 Kg
• Max. Nm Per Cycle 45
• Max. Nm Per Hour 55000
• Max Impact Speed 2.0 m/s
• Weight 220 g
• Body Length (B) 123 mm
• Tip Length x Diameter (CxE) 18x18 mm

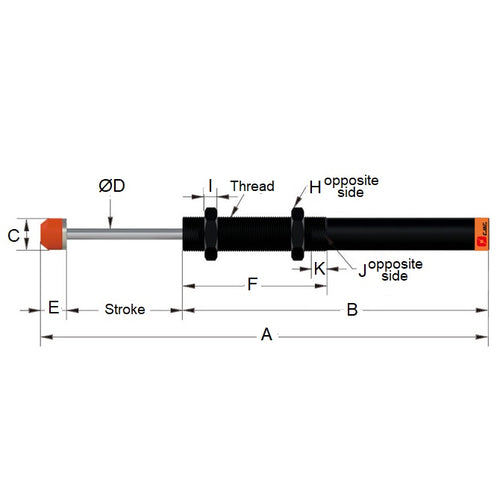

• Figure Figure 1.
