ID-P020S-20-011-040BB-F-A-C - Datasheet

MBA

Category Information

Pulleys - Timing Idler

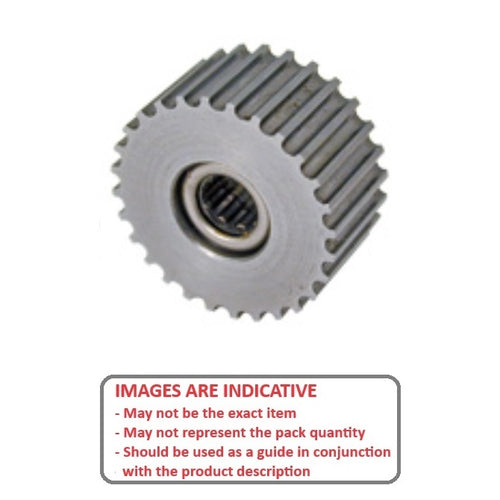

Timing Idler Pulleys. Complete with Needle Roller Bearing.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • The timing belt idler spins on the shaft rather than transimitting torque from the belt. This allows for an adjustable idler shaft to be able to modify the tension of the timing system.
  • Can be used directly on shafts with a surface hardness of RC 58 or higher.
  • Can be run on hardened Inner Rings.
  • See also Drive Tighteners. 12.7mm Bore models can be run directly on the drive tighteners.

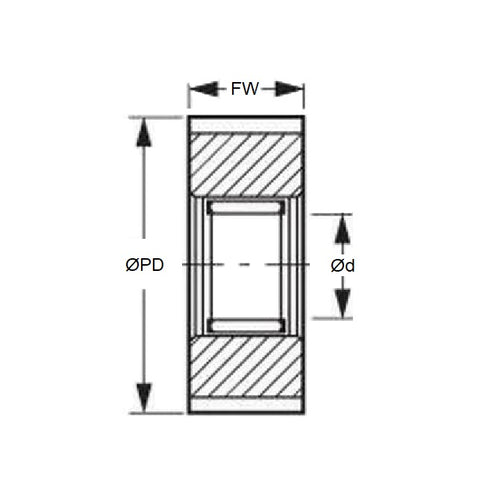

Product Data

  • Belt Type : S2M
  • O.D. 12.220 mm
    (Equiv. 0.481 in.)
  • Bore (B) 4.000 mm
    (Equiv. 0.157 in.)
  • Face Width (F) 11.00 mm
  • Number of Teeth 20
  • Bearing Type Ball Bearing - Both Sides
  • Style Flanged
  • Flange Diameter 16.00
  • Material Aluminium Alloy Clear Anodised
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi AHTFW20-S2M100-4
    • AHTFW20S2M1004
