TP-036-0127-C - Datasheet
MBA
Category Information
Pins - Taper Imperial - Miniature - Carbon SteelCarbon Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data

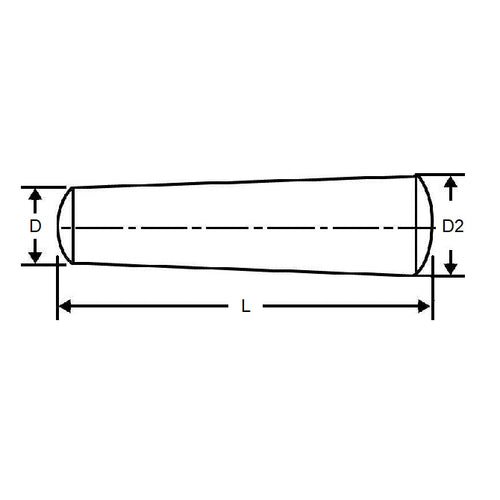

- Nom. Large End Diameter (D2) : 3.58 mm
- Length (L) 12.70 mm
- Nom. Small End Diameter (D) 3.32 mm
- Pin Number 2/0
- Material Carbon Steel 12L14
Product Compliance and Data
Additional Resources
Cross References
- Huyett® TP-20-0500
- NoCor® TP-20-0500
- TP200500
