DP060-012-304-REJECTS - Datasheet
MBA
Category Information

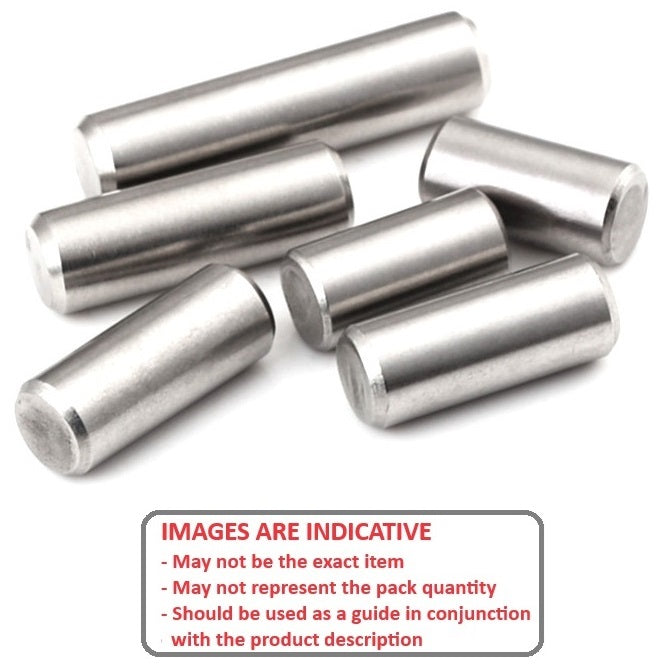

Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless303-304 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.

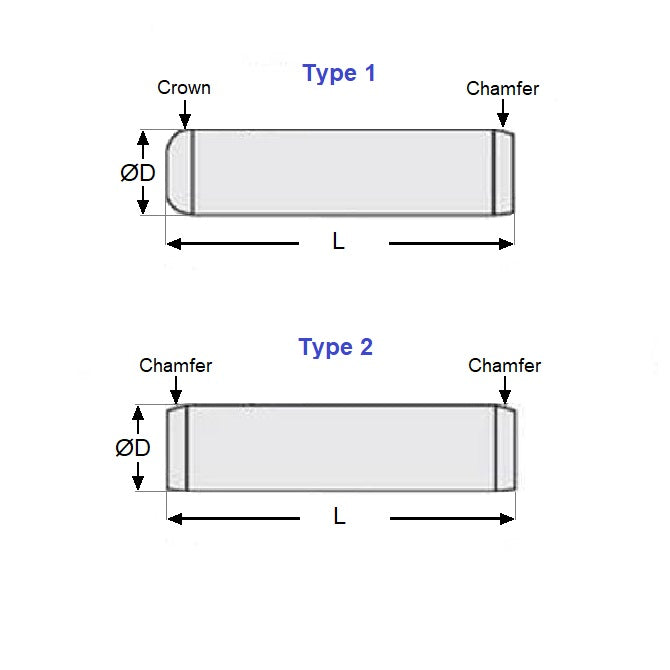

- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data

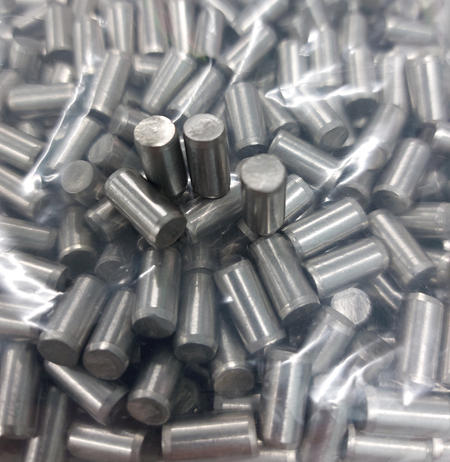

Deleted Item. Available while stocks last. Tolerances are per standards, but the ends of these pins have been ground roughly.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
6.000
mm
(Equiv. 0.236 in.) - Length (L)
12.00
mm
(Equiv. 0.472 in.) - Approx. Overall Length
12.00
mm
(Equiv. 0.472 in.) - Type Rough Chamfered Ends
- Standard Rejects
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
