DP127-019-CH-1 - Datasheet
NoCor
Category Information

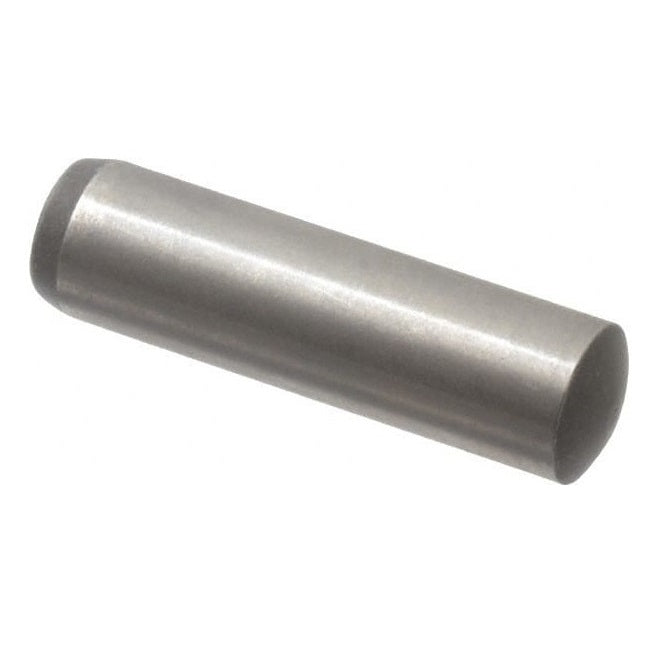

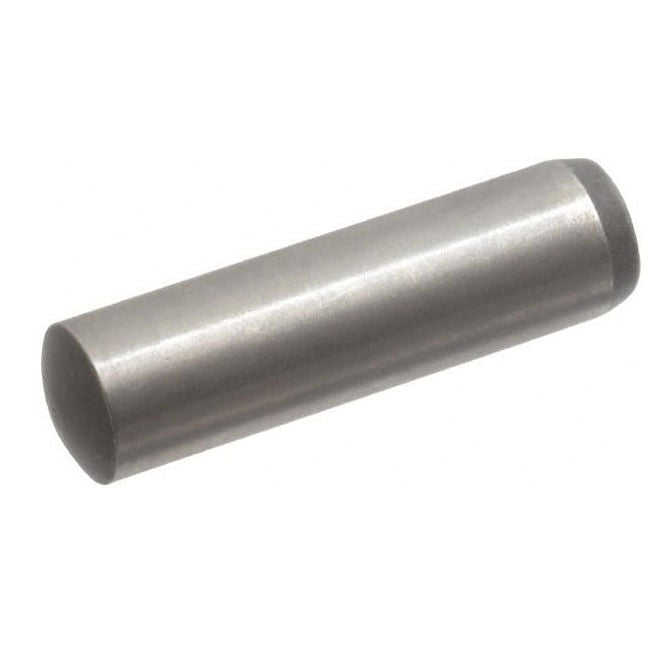

Pins - Dowel - Standard - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN6325, ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
12.700
mm
+ 0.007 / + 0.018
(Equiv. 0.5 in.) - Length (L)
19.05
mm
+/- 0.420
(Equiv. 0.75 in.) - Approx. Overall Length
19.05
mm
+/ - 0.420
(Equiv. 0.75 in.) - Type 1 (Chamfer One End)
- Standard Based on DIN 6325
- Material Steel 100Cr6 - Heat Treated with Bright Finish Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 241322
- NoCor DOW-500-0750
- BRB241322P
- BRB-241322P
- DOW5000750
