DP064-044-303-1 - Datasheet
NoCor
Category Information

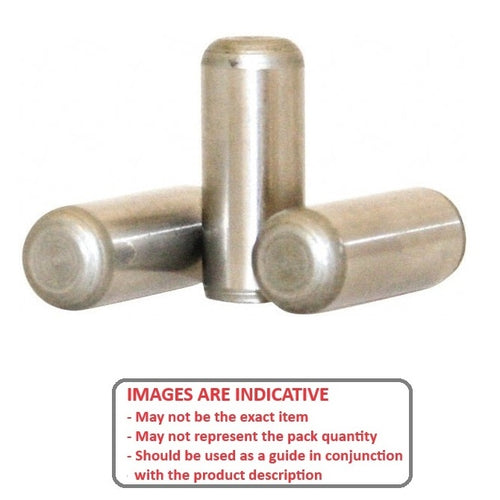

Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless303-304 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
6.350
mm
+ 0.006 / + 0.015
(Equiv. 0.25 in.) - Length (L)
44.45
mm
+/- 0.500
(Equiv. 1.75 in.) - Approx. Overall Length
44.45
mm
+/ - 0.500
(Equiv. 1.75 in.) - Type 1 (Chamfer One End)
- Chamfer 1.20 x 15 Deg
- Standard Based on DIN 6325
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWS3-250-1750
- DOWS32501750
- A9X31-0856
- A9X310856
