PSP-064-022-S420 - Datasheet
MBA
Category Information

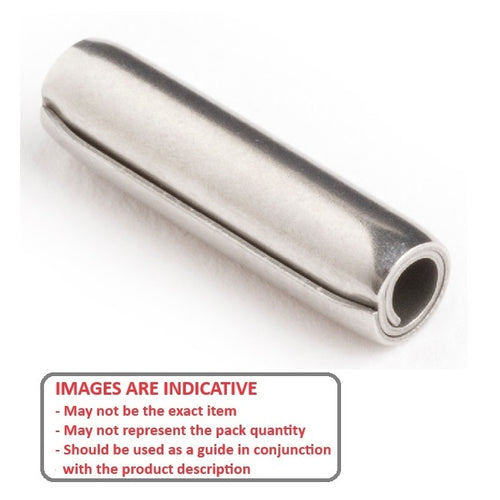

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Length
22.23
mm
+/- 0.50
(Equiv. 0.875 in.) - Drill Size
6.35 - 6.50
mm
(Equiv. 0.25 in.) - Loose Diameter 6.60 - 6.88 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness HV460-560
- Material Stainless Steel AISI 420C Rc 46-52
