SHX-TP-0400-07-020-MZ - Datasheet

MBA

Product Data

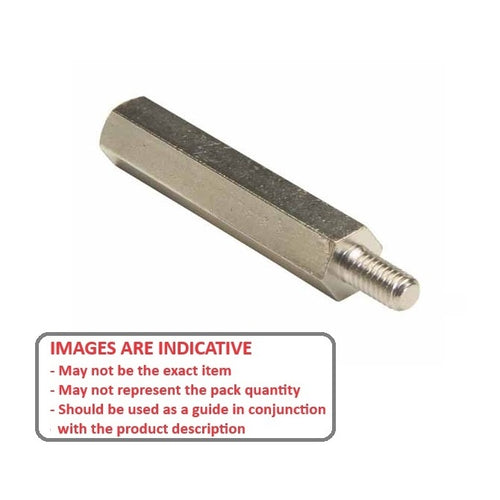

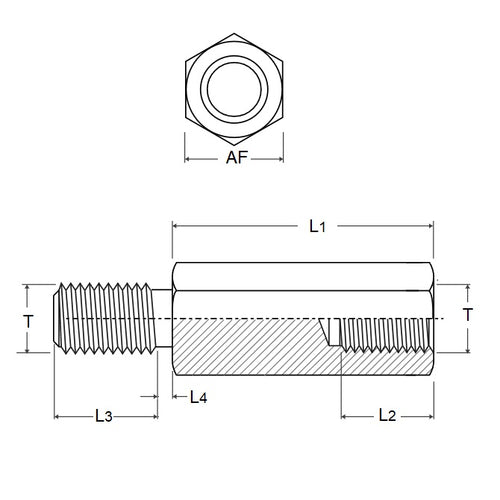

• Thread Size : M4 (4x0.7mm)
• Stud Length (L3) 8.00 mm
  (Equiv. 0.315 in.)
• Base Length (L1) 12.00 mm
  (Equiv. 0.472 in.)
• Across Flats (A/F) 7.00 mm
• Bore Thread Length (L2) 8.00 mm
• Unthreaded Length (L4) 1.20 mm
• Radius (R) 0.20 mm
• Finish Electro-Zinc Yellow
• Material Steel - Mild S300 Pb

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• MPE4-12
• MPE412
