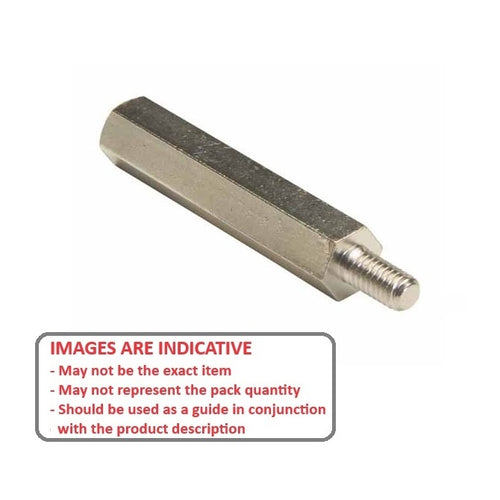

SHX-TP-0500-08-040-MZ - Datasheet

MBA

Product Data

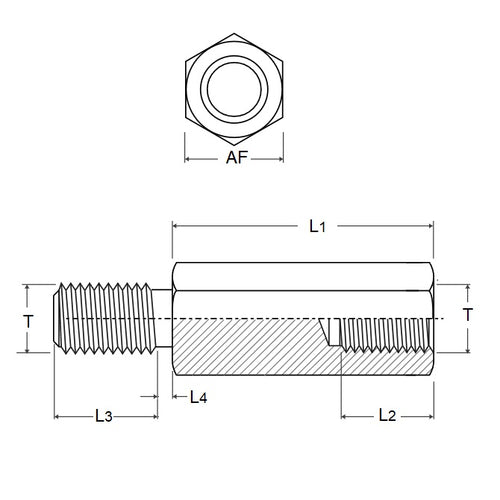

• Thread Size : M5 (5x0.8mm)
• Stud Length (L3) 10.00 mm
  (Equiv. 0.394 in.)
• Base Length (L1) 30.00 mm
  (Equiv. 1.181 in.)
• Across Flats (A/F) 8.00 mm
• Bore Thread Length (L2) 10.00 mm
• Unthreaded Length (L4) 1.40 mm
• Radius (R) 0.20 mm
• Finish Electro-Zinc Yellow
• Material Steel - Mild S300 Pb

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-PLSBWRK8-40
• CPLSBWRK840
• MPE530
• MPE5-30
