Miniature Bearings Australia

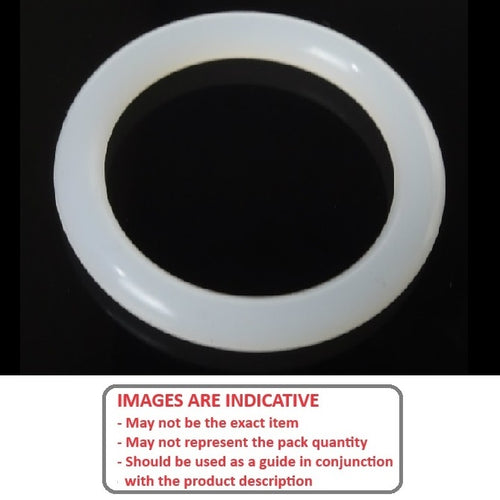

OR-03305-178-S70-027-C - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber PacksSilicone Rubber Packs O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Silicone O-Rings have high thermal resistance and cold flexibility.
- Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Inside Diameter (ID)
:
33.05
mm
(Equiv. 1.301 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Clear
- Hardness 70 Durometer
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N39
- ORB03305178S70027C
- ORB-03305-178-S70-027-C
- BS027SIL70CLEAR
- BS027-SIL70-CLEAR
