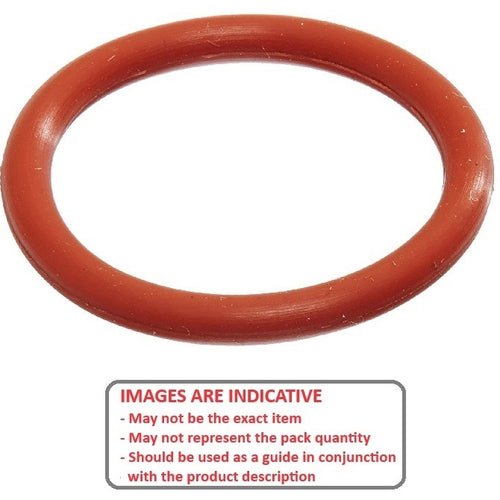

OR-00178-178-S70-004-R - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber PacksSilicone Rubber Packs O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Silicone O-Rings have high thermal resistance and cold flexibility.
- Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
- Inside Diameter (ID) : 1.78 mm
- Section (t) 1.78 mm
- Colour Red
- Hardness 70 Durometer
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- ORB00178178S70004R
- ORB-00178-178-S70-004-R
- BS004-SIL70-RED
- BS004SIL70RED
