GAS20RS - Datasheet

MBA

Category Information

Gas Springs - Assembly End Fittings

Assembly End Fittings Gas Springs. Assembly end fittings for Gas springs/struts.

    Product Data

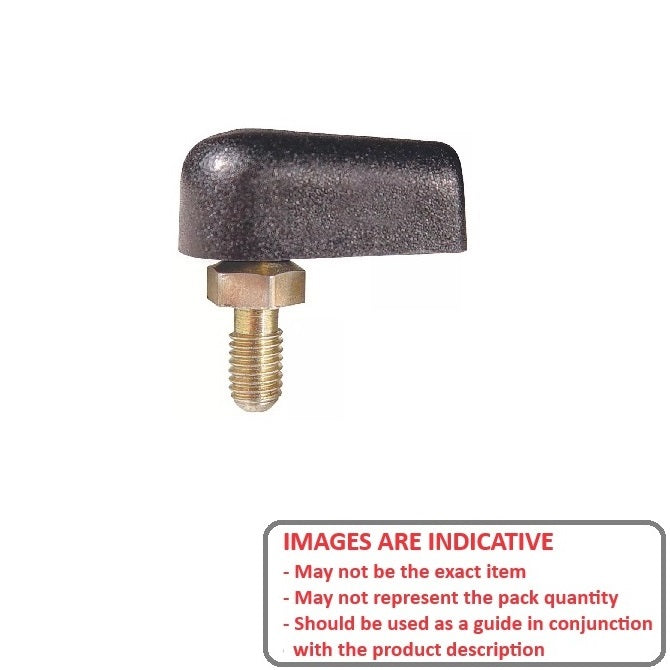

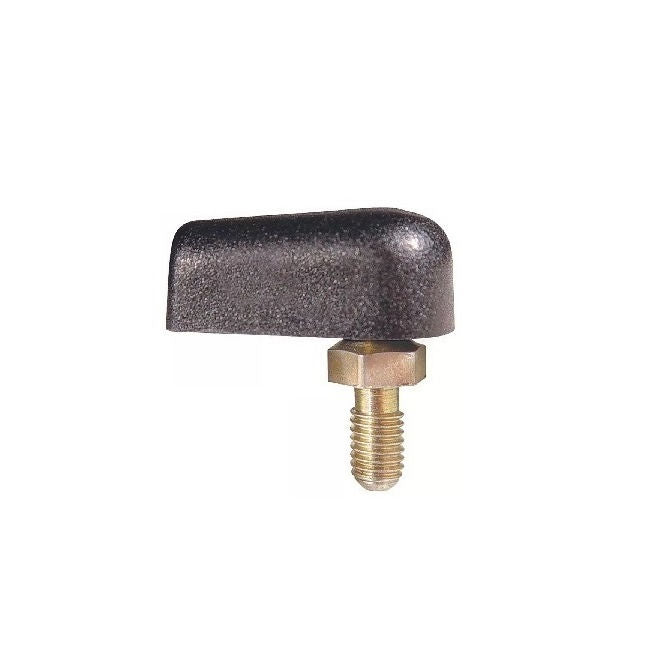

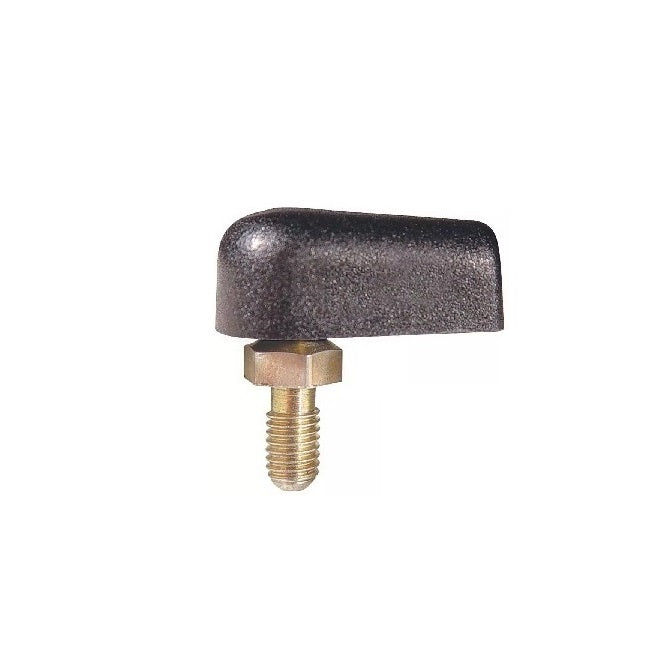

    • Type : Nylon Ball Joint
    • Fits Body Diameter 14.99 mm
      (Equiv. 0.59 in.)
    • Internal Thread Size M5 x 0.8
    • Center of Eye (F) 17.00 mm
    • Thread Length (J) 10.00 mm
    • Eye Hole/Thread size(E/H) M5 (5x0.8mm) mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS20
      • GAS-20
      View full details

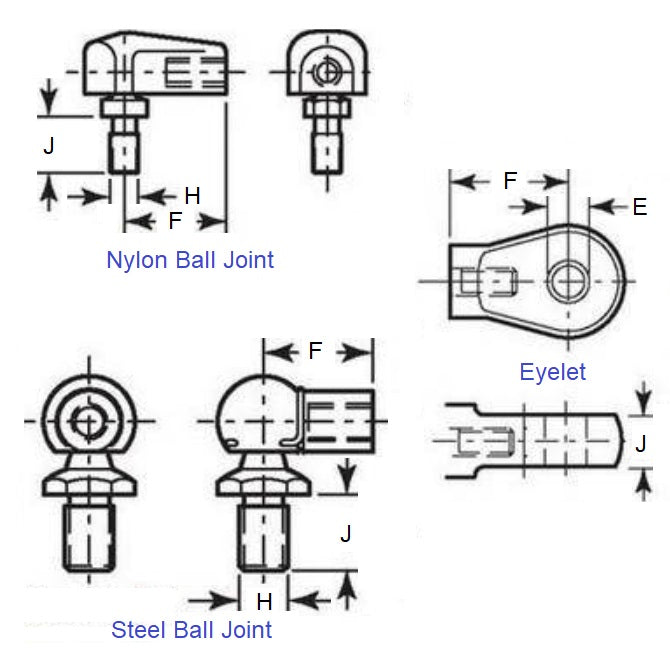

      GAS20RSDiagramGAS20RSImage
