Miniature Bearings Australia
NT160M-QK-CB - Datasheet
MBA
Category Information
Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M16 (16x2mm)

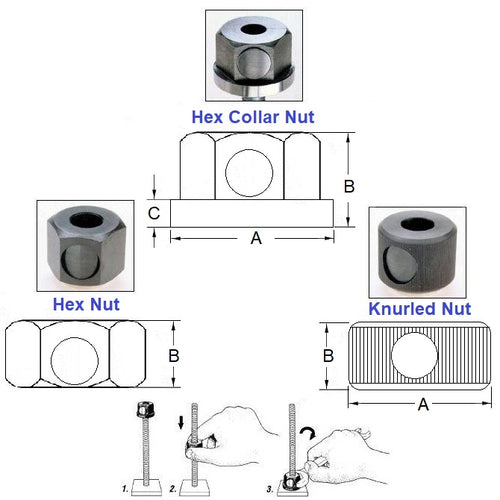

- Diameter (A)
38.00
mm
(Equiv. 1.496 in.) - Height (B) 28.50 mm
- Load Rating 4095 kg
- Torque 74.95 Nm

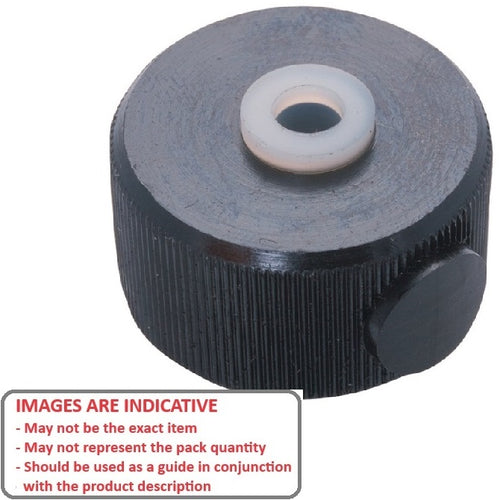

- Type Knurled Round
Product Compliance and Data
Additional Resources
Cross References
- FKN-716
- FKN716
