NT120M-QK-CB - Datasheet
MBA
Category Information

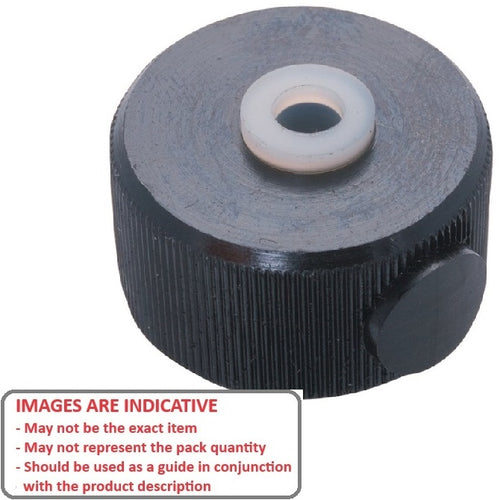

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : M12 (12x1.75mm)

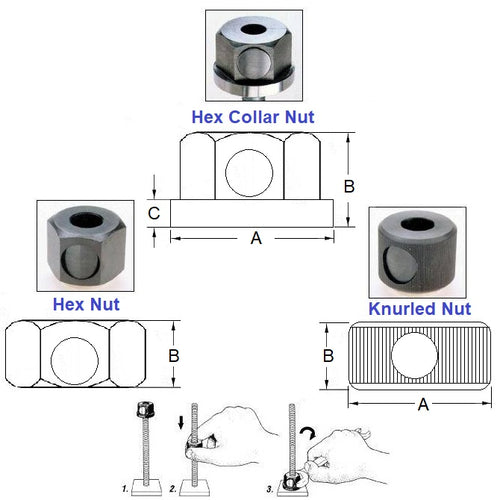

- Diameter (A)
38.00
mm
(Equiv. 1.496 in.) - Height (B) 28.50 mm
- Load Rating 4005 kg
- Torque 51.78 Nm
- Type Knurled Round
Product Compliance and Data
Additional Resources
Cross References
- FKN-712
- FKN712
