NT060M-QC-CB - Datasheet
MBA
Category Information

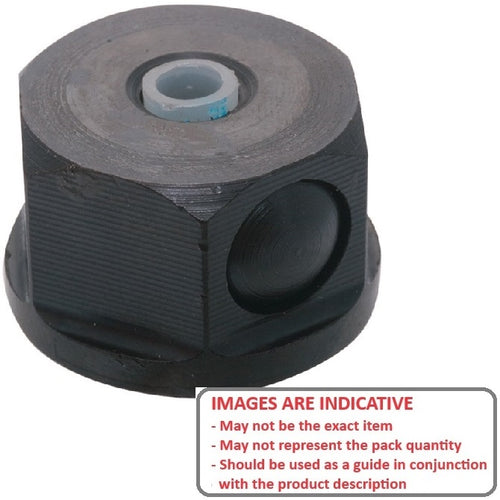

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : M6 (6x1mm)

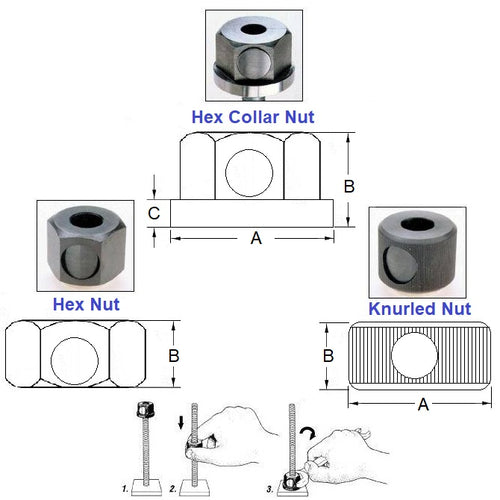

- Across Flats (A/F)
22.5
mm
(Equiv. 0.886 in.) - Height (B) 16.00 mm
- Flange Thickness (C) 3.50 mm
- Load Rating 940 kg
- Torque 10.78 Nm
- Type Hex with Collar
Product Compliance and Data
Additional Resources
Cross References
- FCN-706
- FCN706
