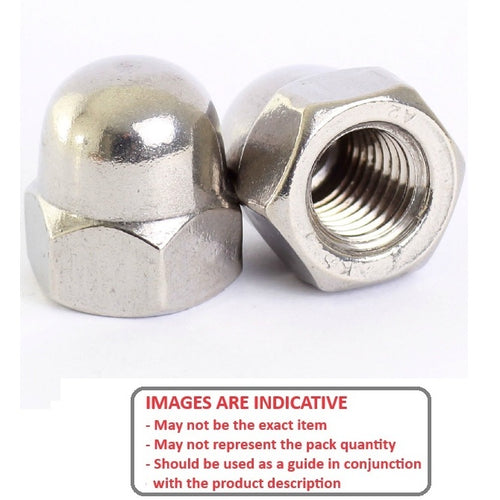

NT300M-DM-S4 - Datasheet

MBA

Product Data

• Thread Size : M30 (30x3.5mm)
• Material 304 Stainless
• Height (B) 52 mm
  (Equiv. 2.047 in.)
• Across Flats (A) 46
• Pitch 3.500 mm
• Threads Per Inch 7.26 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• DOM30
