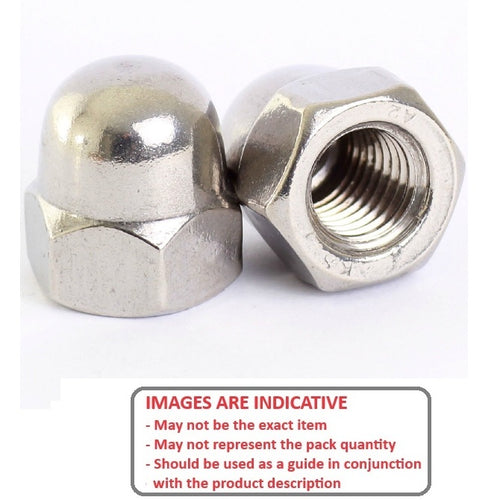

NT270M-DM-S4 - Datasheet

MBA

Product Data

• Thread Size : M27 (27x3mm)
• Material 304 Stainless
• Height (B) 47 mm
  (Equiv. 1.85 in.)
• Across Flats (A) 41
• Pitch 3.000 mm
• Threads Per Inch 8.46 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
