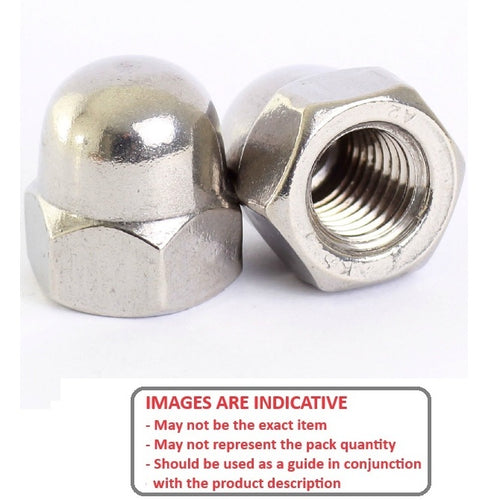

NT180M-DM-S4 - Datasheet

MBA

Product Data

• Thread Size : M18 (18x2.5mm)
• Material 304 Stainless
• Height (B) 32 mm
  (Equiv. 1.26 in.)
• Across Flats (A) 27
• Pitch 2.500 mm
• Threads Per Inch 10.16 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
