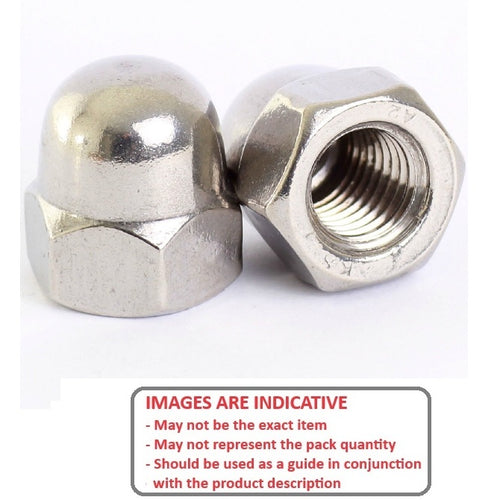

NT140M-DM-S4 - Datasheet

MBA

Product Data

• Thread Size : M14 (14x2mm)
• Material 304 Stainless
• Height (B) 25 mm
  (Equiv. 0.984 in.)
• Across Flats (A) 22
• Pitch 2.000 mm
• Threads Per Inch 12.7 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 94000A431
• DOM14
