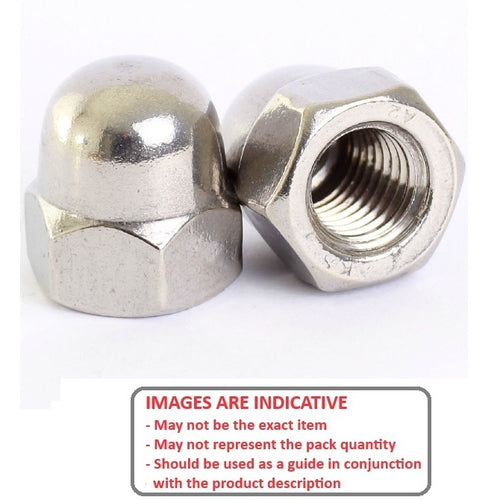

NT127W-DM-S6 - Datasheet

MBA

Product Data

• Thread Size : 1/2-12 BSW (12.7mm)
• Material 316 Stainless
• Height (B) 23.81 mm
  (Equiv. 0.937 in.)
• Across Flats (A) 22.22
• Pitch 2.117 mm
• Threads Per Inch 12 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 1-2WSDN6
• 12WSDN6
