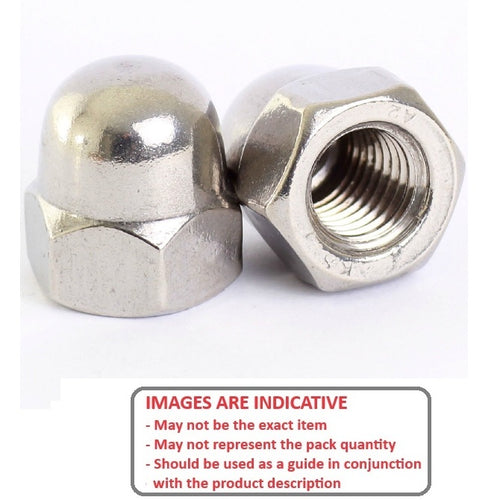

NT100M-DM-S4 - Datasheet

MBA

Product Data

• Thread Size : M10 (10x1.5mm)
• Material 304 Stainless

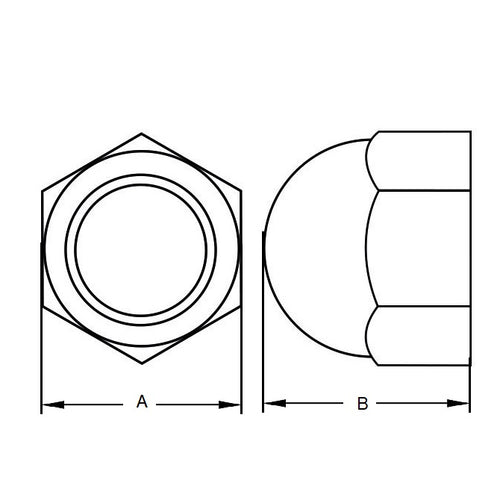

• Height (B) 18 mm
  (Equiv. 0.709 in.)
• Across Flats (A) 17
• Pitch 1.500 mm
• Threads Per Inch 16.93 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
