PLST-080M-220-AC-035 - Datasheet
MBA
Category Information

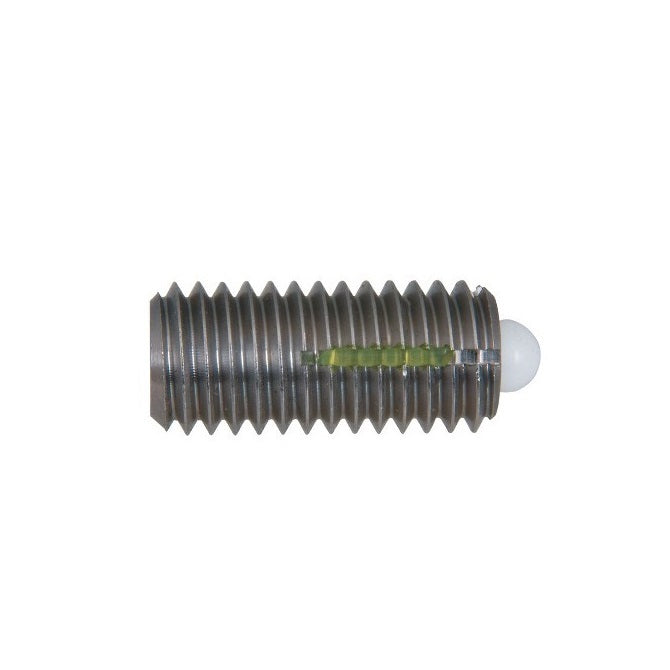

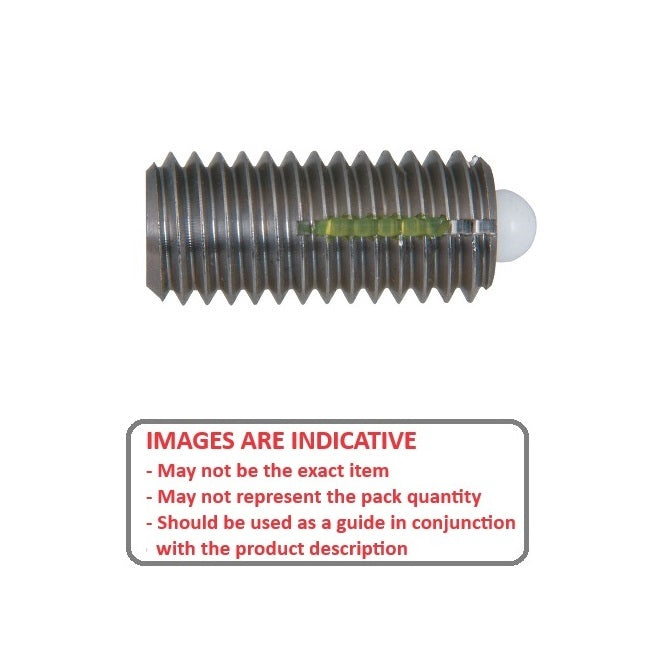

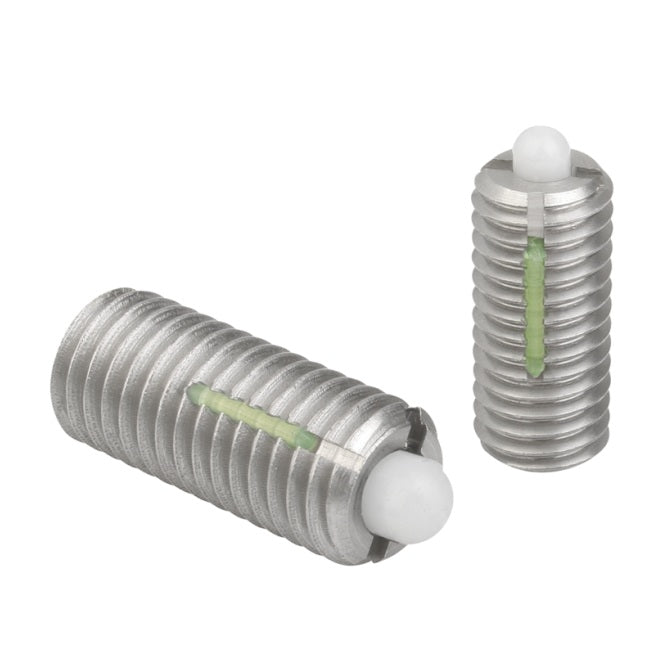

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

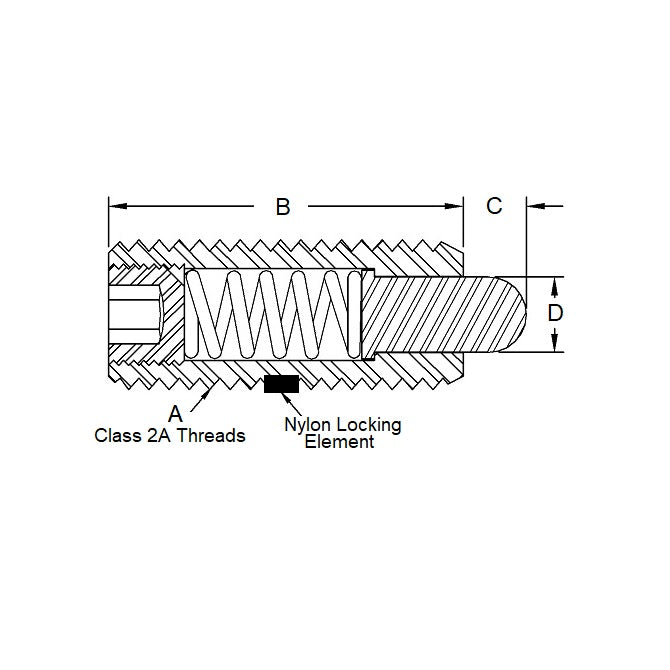

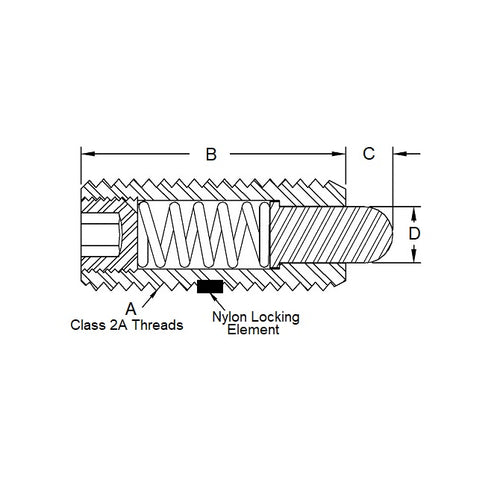

- Thread Size (A) : M8 (8x1.25mm)
- Thread Length (B)
22.0
mm
(Equiv. 0.866 in.) - Initial Pressure (F1) 35.00 N
- Final Pressure (F2) 22.00 N
- Tip Diameter (D) 3.00 mm
- Tip Length (C) 3.50 mm
- Body Length (B) 9.00 mm
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- PLST080220AC035
