SS080M-0300-AS-CP - Datasheet
SSA
Category Information

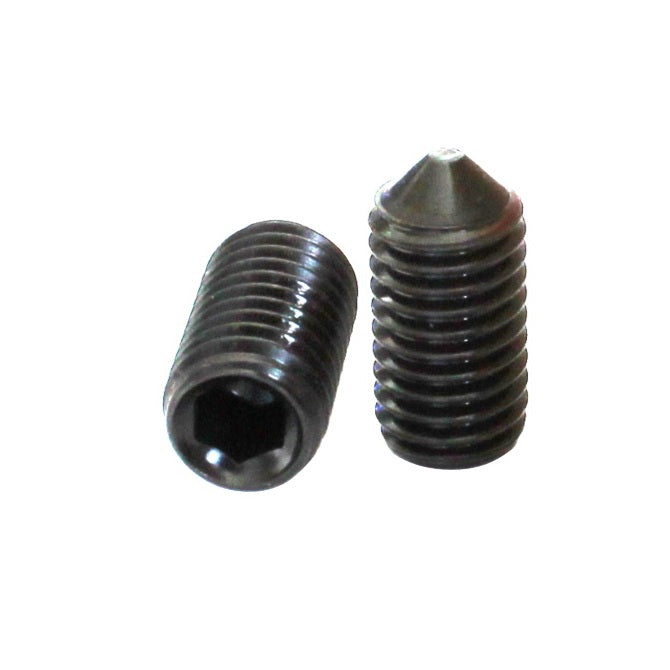

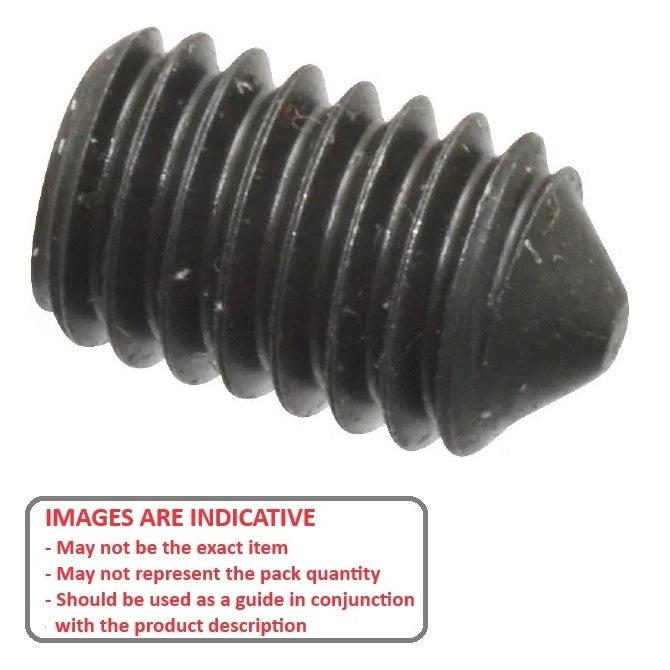

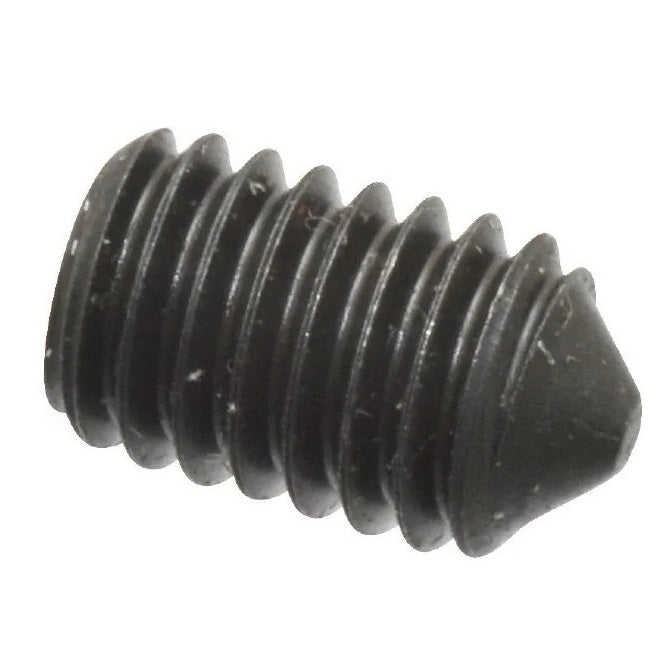

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

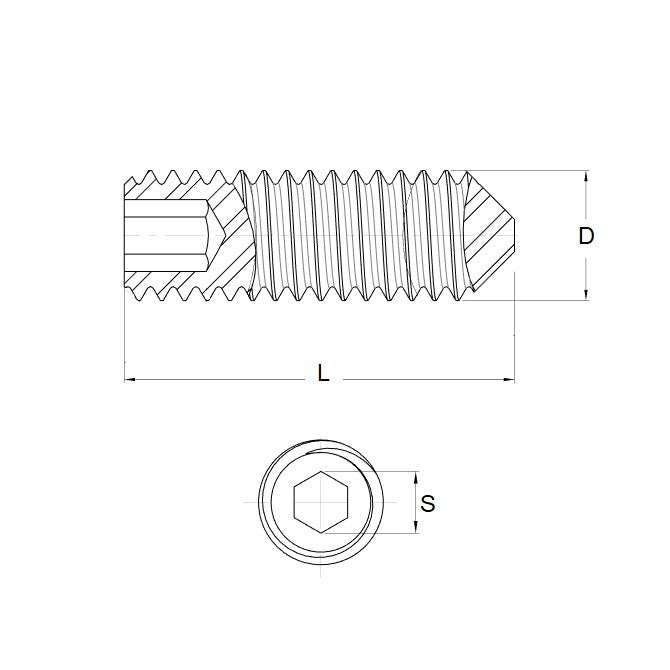

- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
30.0
mm
(Equiv. 1.181 in.) - Type Cone Point
- Hex Key Size 4.00
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 831116
- 91210A440
