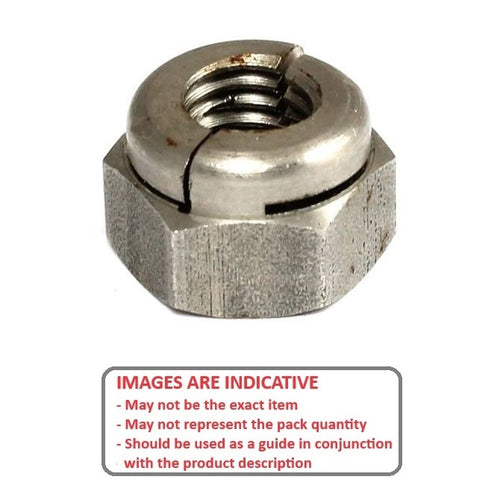

NT080M-AE-S4 - Datasheet

MBA

Category Information

Nuts - Aerotight

Aerotight Nuts. Aerotight is a Registered Trademark and can only be applied to goods manufactured by the Premier Screw and Repetition Company Limited.

  • All-metal, self-locking nut designed to stay in place even under severe vibration. Works by using a locking collar that is deflected to grip the bolt's threads, creating a "prevailing torque" that prevents loosening.
  • All-metal construction allows them to be used at higher temperatures and makes them resistant to oil.
  • Also known as an Aerotight lock nut or Stiff Nut.
  • Any company infringing the registered trade mark may be liable to legal proceedings.
  • Aerotight nuts should not be used on damaged or interrupted threads.
  • When assembled on the screw at least two threads should protrude through the Aerotight nut.
  • Advantages: Will not work loose. No other locking device needed.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size : M8 (8x1.25mm)
  • Pitch in mm / Threads Per Inch 1.250 mm / 20.32 TPI

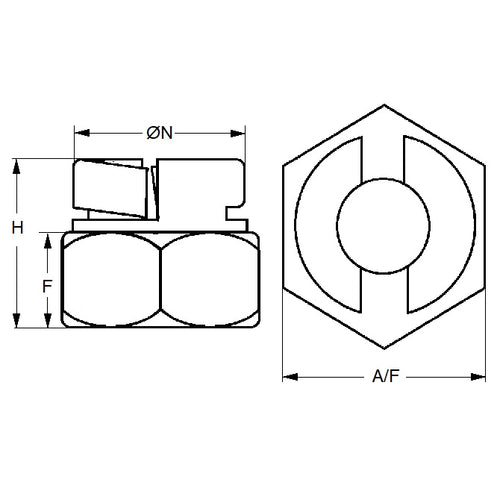

  • Overall Height (H) 10.00 mm
    (Equiv. 0.394 in.)
  • Nut Height (F) 6.12 mm
  • Across Flats (A/F) 13.00 mm
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • AIRM8
  • AIR-M8
