Miniature Bearings Australia
SC080M-025-C-SKT-A - Datasheet
MBA
Category Information

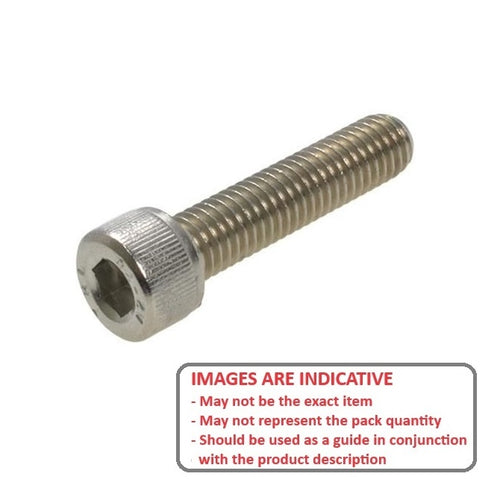

Screws - Socket Cap - AluminiumAluminium Socket Cap Screws. Variety of colours available.
- An expanded range may be available on special order. Please enquire.
- Other colours available on request. Minimum quantities will apply.
- Metric Sizes to DIN912.
Product Data

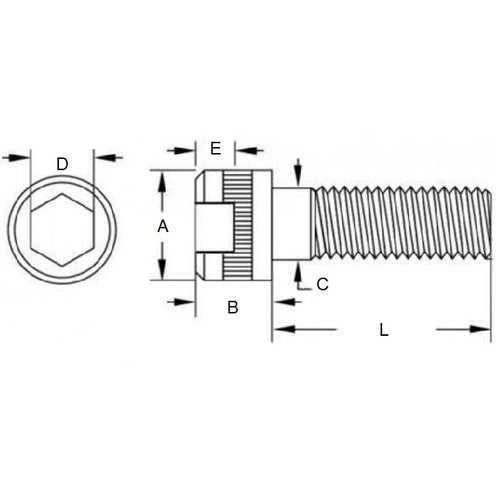

- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (L)
25
mm
(Equiv. 0.984 in.) - Material A7050 Aluminum
- Head Length (B Max.) 8 mm
- Head Diameter (A Max.) 13 mm
- Hex Key (D) 6.00 mm
- Colour Natural
- Pitch 1.25 mm
- Threads Per Inch 20.320 TPI
- Min thread Length Fully Threaded mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-AL-M8-25
- CSHALM825
