PLBT-080M-160-CS-050 - Datasheet
MBA
Category Information

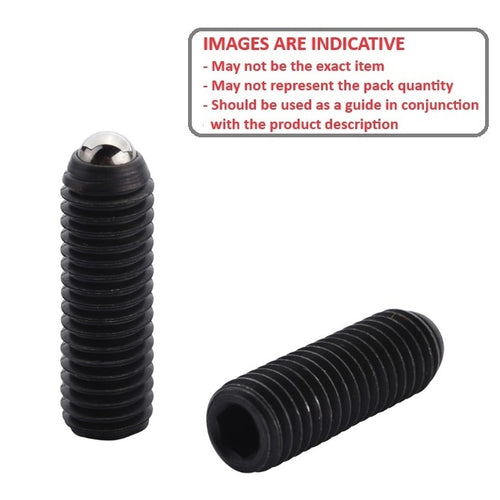

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M8 (8x1.25mm)
- Body Length (L)
16.0
mm
(Equiv. 0.63 in.) - Initial Pressure (F1) 6.00 N
- Final Pressure (F2) 50.00 N
- Ball Diameter (D1) 5.00 mm
- Ball Height (H) 1.60 mm
- 304 Stainless
- Body Material Alloy Steel
- Drive 4.0mm Hex
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-BPW8-10P
- CBPW810P
