SHX-TP-0800-14-100-MZ - Datasheet

MBA

Product Data

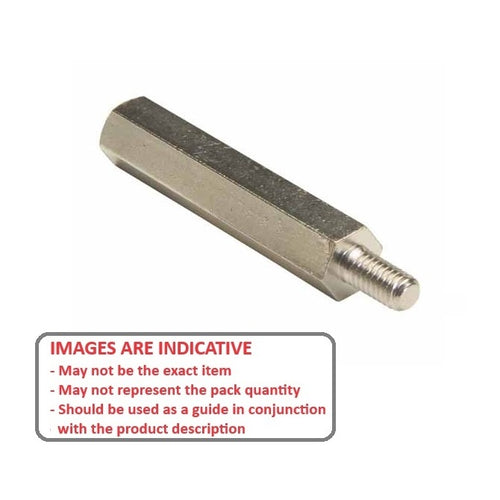

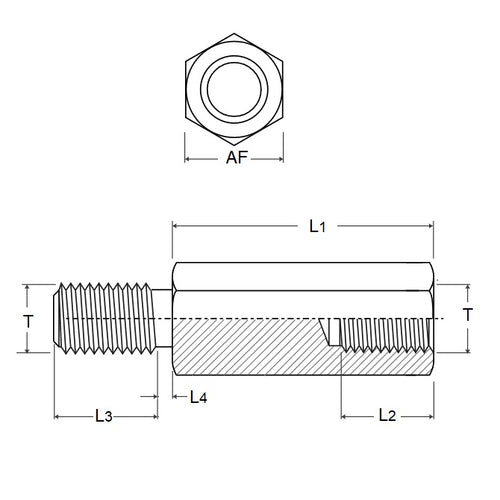

• Thread Size : M8 (8x1.25mm)
• Stud Length (L3) 12.000 mm
  (Equiv. 0.472 in.)
• Base Length (L1) 100 mm
  (Equiv. 3.937 in.)
• Across Flats (A/F) 14.00 mm
• Bore Thread Length (L2) 16.00 mm
• Finish Nickel Electroplating
• Material Steel - Mild

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-PLSBWRK14-100
• CPLSBWRK14100
