PLBT-060M-140-CS-013 - Datasheet
MBA
Category Information

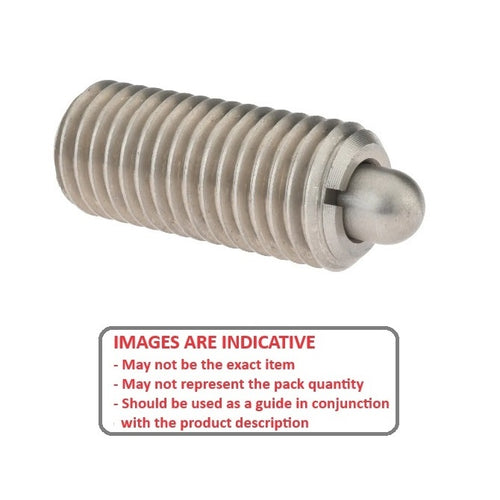

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
14.0
mm
(Equiv. 0.551 in.) - Initial Pressure (F1) 9.0 N
- Final Pressure (F2) 13.0 N
- Ball Diameter (D1) 3.5 mm
- Ball Height (H) 1.0 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3391A32
- BM125
- BM-125
- PLBT060140CS013
