PLBT-060M-140-S3LK-013 - Datasheet
MBA
Category Information

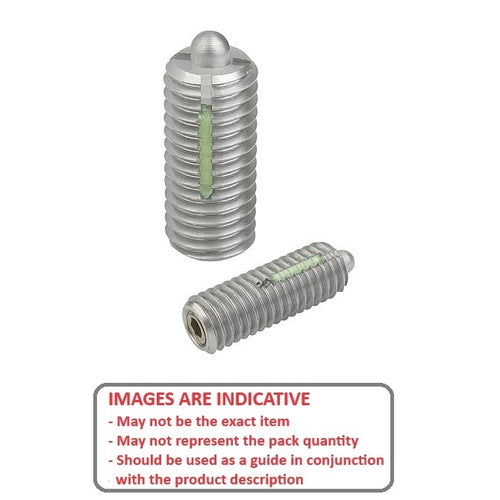

Plungers - Ball Threaded - Stainless Body and Ball with ThreadlockStainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
14.0
mm
(Equiv. 0.551 in.) - Initial Pressure (F1) 9.0 N
- Final Pressure (F2) 13.0 N
- Ball Diameter (D1) 3.5 mm
- Ball Height (H) 1.0 mm
- Drive 1mm Slotted Drive
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- BPM6SSLOK
- BPM6SS-LOK
- KBP198
- KBP-198
- PLBT060140S3LK013
