PLBT-060M-140-S3-013 - Datasheet

MBA

Category Information

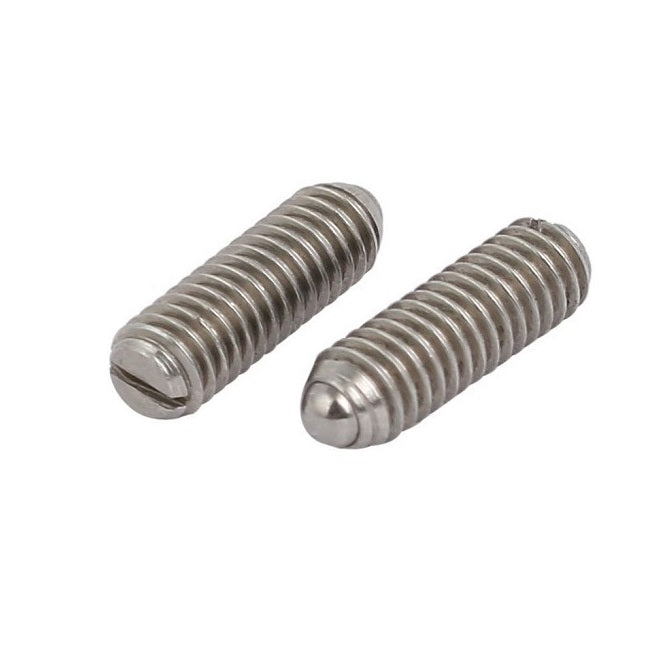

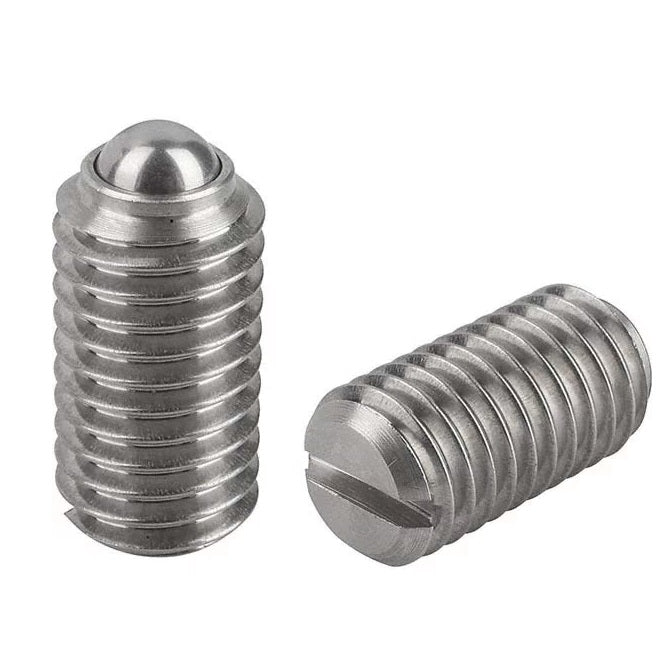

Plungers - Ball Threaded - Stainless Body - Stainless Ball

Stainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M6 (6x1mm)
    • Body Length (L) 14.0 mm
      (Equiv. 0.551 in.)
    • Initial Pressure (F1) 9.0 N
    • Final Pressure (F2) 13.0 N
    • Ball Diameter (D1) 3.5 mm
    • Ball Height (H) 1.0 mm
    • Drive 1mm Slotted Drive
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 85015A47
    • Elesa GN615-M6-KN
    • GN615M6KN
    • BPM6SS
    • PLBT060140S3013
    • SBM125
    • SBM-125
    View full details

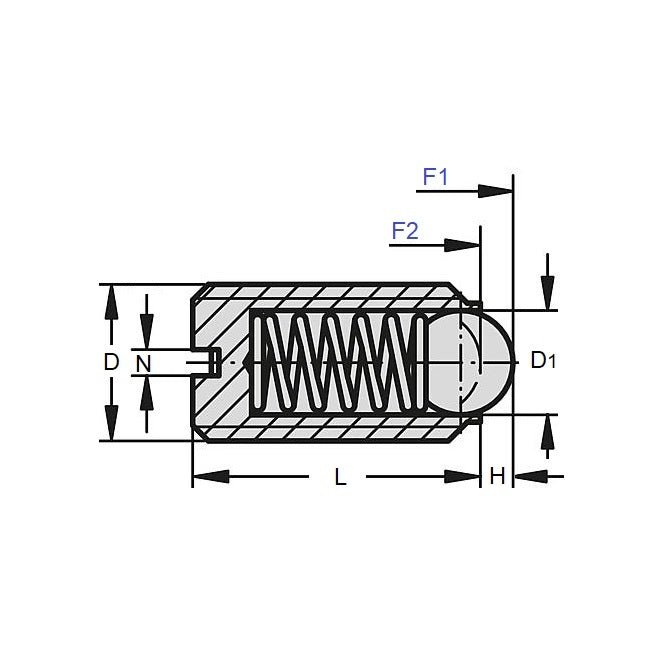

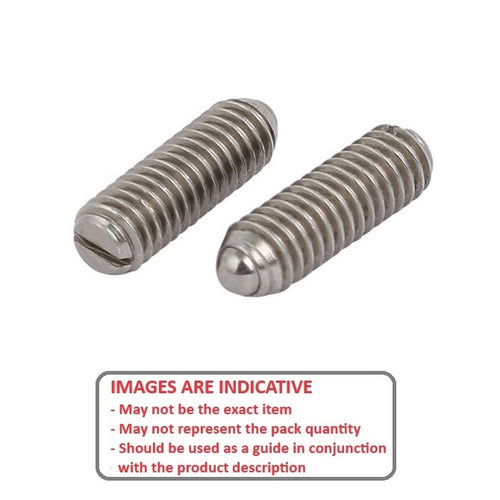

    PLBT-060M-140-S3-013DiagramPLBT-060M-140-S3-013Image
