PLST-060-130-HKC-018 - Datasheet
MBA
Category Information

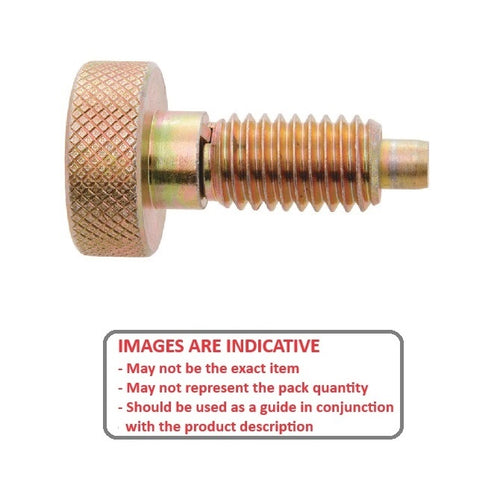

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Thread Length (B)
13.0
mm
(Equiv. 0.512 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 17.8 N
- Tip Diameter (D) 3.0 mm
- Tip Length (C) 3.0 mm
- Head Length (F) 8.0
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 84915A52
- PHR60
- PHR-60
