Category Information

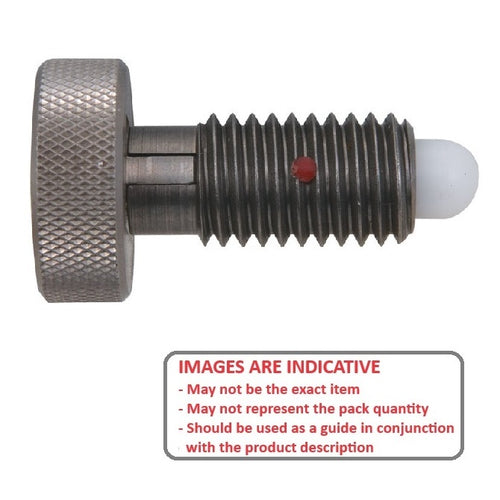

Plungers - Spring - Knurled Handle - Locking - Stainless-AcetalStainless-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

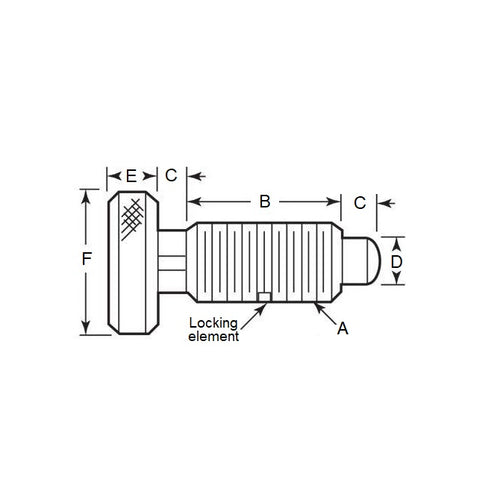

- Thread Size (A) : M6 (6x1mm)
- Thread Length (B)
12.7
mm
(Equiv. 0.5 in.) - Initial Pressure (F1) 2.0 N
- Final Pressure (F2) 11.0 N
- Tip Diameter (D) 3.7 mm
- Tip Length (C) 3.2 mm
- Head Height (E) 6.3 mm
- Head Diameter (F) 12.7 mm
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- NKPM16
- NKPM-16
