SS060M-0208-CS-BR-RB - Datasheet
MBA
Category Information

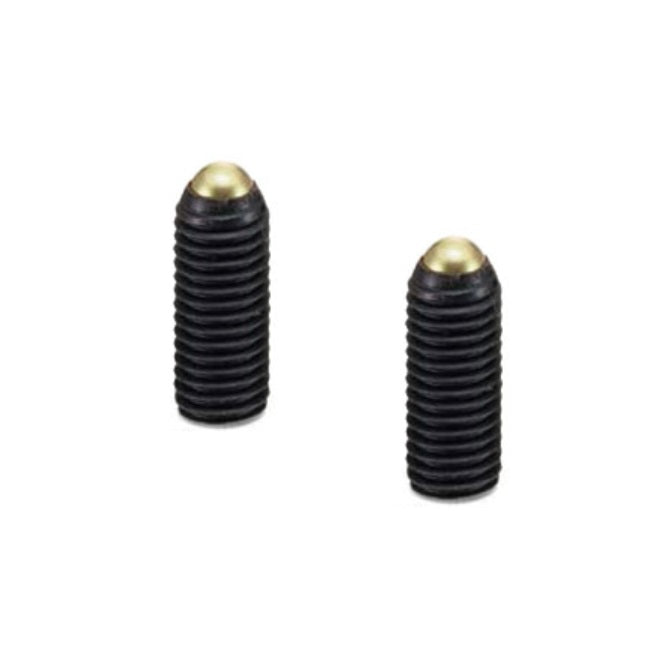

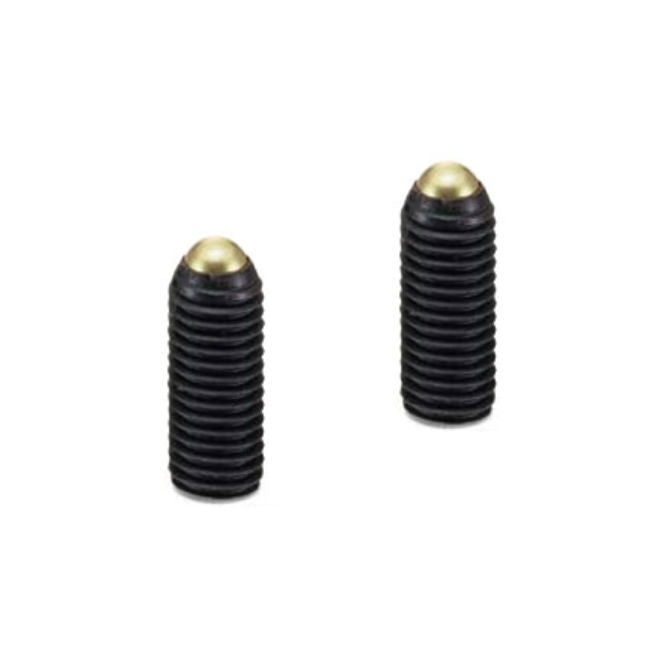

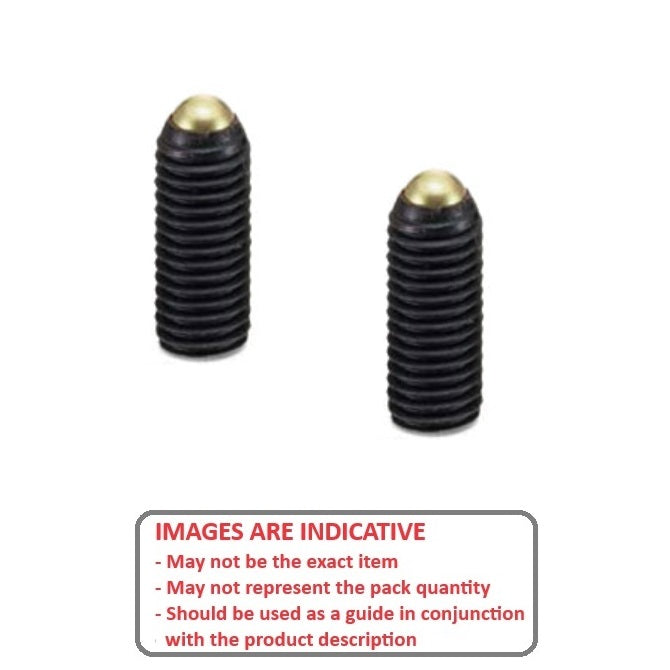

Socket Set Screws - Rolling Ball Tip - Carbon SteelCarbon Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Ball materials include carbon steel, brass, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M6 (6x1mm)
- Thread Length (L)
19.5
mm
(Equiv. 0.768 in.) - Type Rolling Ball Tip
- Overall Length (L) 20.8 mm
- Ball Diameter (D) 4.0 mm
- Hex Key Size 3.0
- Body Material Carbon Steel
- Ball Material Brass
- Pitch 1.0 mm
- Threads Per Inch 25.4 TPI
- Finish Black Oxide
- Material Carbon Steel with Brass tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SCS-M6X20-BR
- SCSM6X20BR
