SK060M-016-PH-CZ - Datasheet
MBA
Category Information

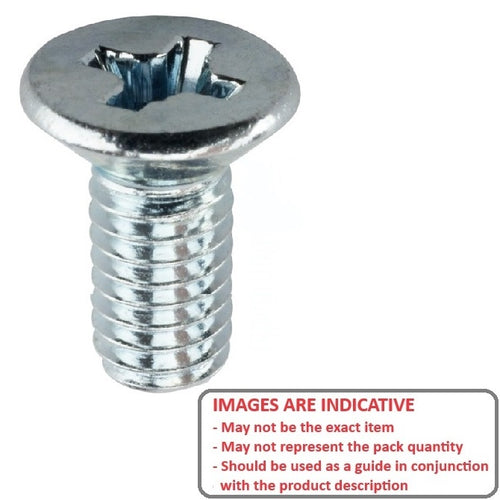

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

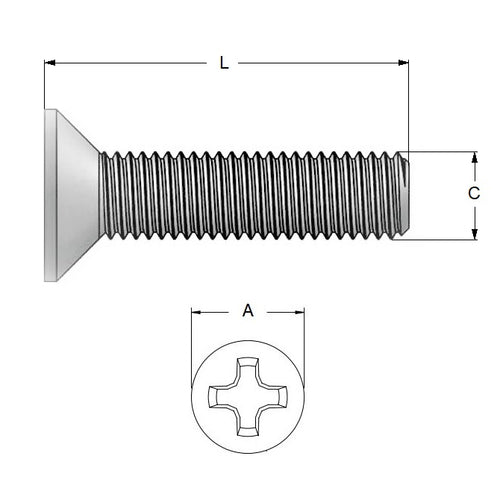

- Thread Size (C) : M6 (6x1mm)
- Overall Length (L)
16
mm
(Equiv. 0.63 in.) - Material Zinc Plated Steel
- Max Head Diameter (A) 11.00 mm
- Max Head Height 3.3 mm
- Type Countersunk / Philips
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91420A426
- Hitech MSCPZP616
