SHX-TP-0600-12-200-MZ - Datasheet

MBA

Category Information

Pillars - Threaded

Threaded Pillars. Standoffs

  • Also know as stand offs

Product Data

  • Thread Size : M6 (6x1mm)
  • Stud Length (L3) 9.000 mm
    (Equiv. 0.354 in.)
  • Base Length (L1) 200 mm
    (Equiv. 7.874 in.)
  • Across Flats (A/F) 12.00 mm
  • Bore Thread Length (L2) 12.00 mm
  • Finish Nickel Electroplating
  • Material Steel - Mild
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi C-PLSBWRK12-200
    • CPLSBWRK12200
    View full details

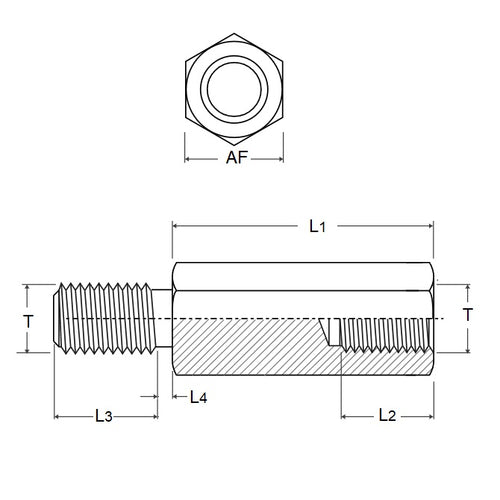

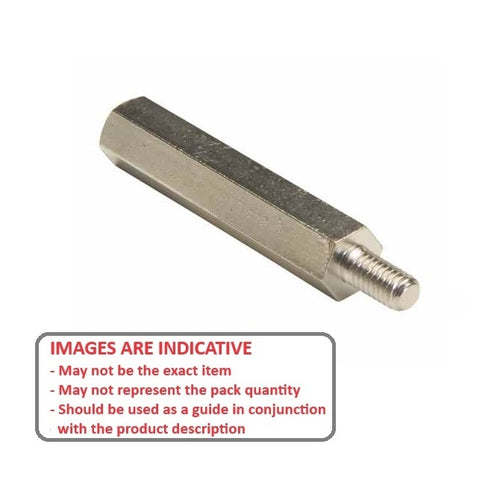

    SHX-TP-0600-12-200-MZDiagramSHX-TP-0600-12-200-MZImage
